BOSS FW-3 Mods

I have a BOSS FW-3 pedal bought in the 90’s when I started to play guitar, looking for a Jimi Hendrix or SRV sound. Why this pedal instead of a Cry Baby or VOX? Because back then you bought what they had in the shop.

20170727_155340

Some months ago I decided to sell it because I didn’t like its sound and behavior any more. Too subtle when placed before dirt and too uneven in volume when placed after. But nobody seemed to be attracted to this squared tank in spite of the low price I asked for it, so I kept it.

It is not a bad product compared to other wah pedals, it is just you get sick of the same tone and problems, and want to get a different tone (and problems). In fact I like its size and robustness, it is solid like a tank and fits very well under my feet.

So I decided to tweak it a bit in order to find a different sound, and started to look for possible mods in the web: nothing at all.

After studying its circuit, I found that the BOSS FW-3 wah pedal is essentially a modded Cry Baby. A very clear and in depth analysis of the Dunlop Cry Baby can be found here: https://www.electrosmash.com/crybaby-gcb-95

There is plenty of information about mods for Cry Baby. In many sites they talk about these particular mods, in Cry Baby terminology, for a GCB-95 PCB:

  • True bypass (more details in the referenced sites)
  • Mid range response: R1 resistor change from  1.5K to 2K-2.7K
  • Q: R5, from 33K to a bigger value, up to 100K. This mod is already done in a BOSS FW3, there is a pot in the pedal panel for adjusting this value.
  • Sweep Range, change C5 from 0.01uF to a bigger value for lower frequencies and a lower value for higher frequencies range. Typically 0.068uF for a bass wah.
  • Gain and bass response: changing R9 from 390 to a lower value will raise gain and add bass content, while a higher value will reduce the gain

In order to apply this valuable information to modify a FW-3 and find our personal tone, we need to map these components to those found in the BOSS PCB. I didn’t fight with the true bypass mod because I like the BOSS buffer, and it is useful for me in most situations.

From the schematics:

FW3

Mod Cry Baby (GCB-95) FW-3
Gain R9 R6
Sweep range C5 C12
Mids response R1 R4

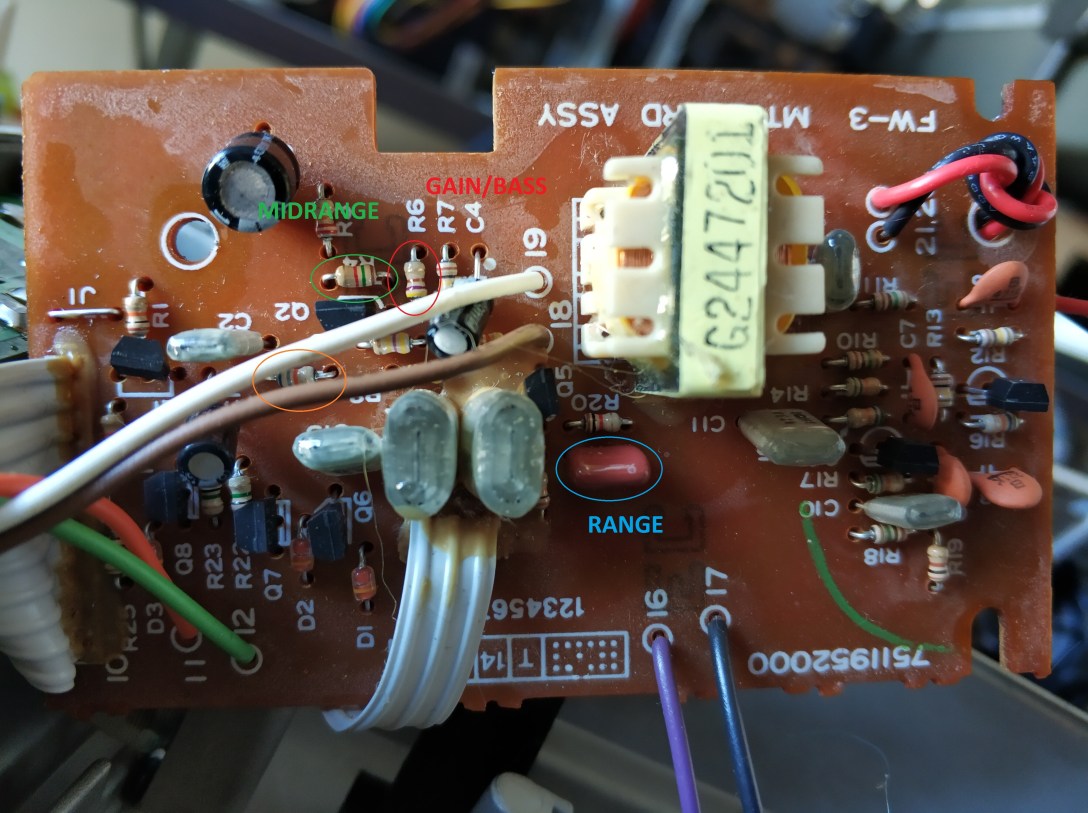

See below the pictures for FW-3 pedal PCB. In the top picture I have marked these components in the board.

IMG_20180201_143735_HHTIMG_20180201_143846_HHT

Which values to choose depends a lot on your personal preferences. I have experimented with some values and ended choosing these ones:

  • R4 (Mids): 2.2K, gives some more mids content.
  • C12 (Sweep range): .022uF, lowers the sweep range in the frequency spectrum, giving a very pronounced WOOOO effect in the lower frequencies end.
  • R6 (Gain): 390. It lowers the gain a bit, making it more even with the effect not engaged

These values give a very personal tone to the FW-3 wah. Even placed before dirt, the effect is very pronounced and significantly different from the original, specially in the lower end of the sweep range.

In a next post I will try to record the sound of the modified pedal.

I’m planning to add some pots in the future to regulate the mids and gain, and even a selector to change among different values for C12. The unit has space in the panel to place the pots and enough space inside to place another two PCBs, so I think it is a perfect platform to play around a bit.

References

http://stinkfoot.se/archives/549

http://www.wah-wah.co.uk/diy.html

https://www.electrosmash.com/crybaby-gcb-95
